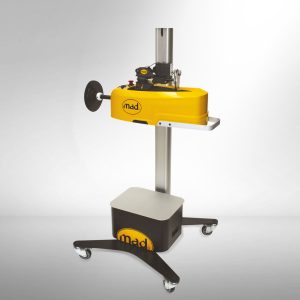

ON CAR BRAKE LATHE
The MAD on-car disc aligner is the most effective equipment to sort out brake disc alignment problems. It eliminates all disadvantages of cast iron brake discs and the influence on materials by simply and lightly cutting down the surface of the disc at both sides simultaneously.
Model : DA-8700
- Fits on 99% of all passenger cars and light commercial vehicles, with or without ABS
- Highly accurate brake lathe
- Bidirectional, height adjustable, heavy duty drive unit
- Brake service for all makes and models
- No time loss in dismantling
- Simple operating procedure
- Guarantees perfect contact between the brake pads and brake disc
- Suitable for servicing all brake discs upto 39mm
- Passenger Vehicle(PV)
- Light Commercial Vehicle (LCV)
- Tyre shop
| Performance specifications | |
|---|---|
| Run-out/Disc oscillation | < 20 m |
| Disc Thickness variation | < 20 m |
| Surface roughness/finish | < 2 m |
| Max. brake disc thickness | 39 mm |
| Max. depth of cut | 0.8 mm. per bit |
| Incremental cutting scale | 0.05 mm. per click. |
| Disc Lathe DL8704 | |
| Automatic feed of bits on disc | 8,5 mm/min |
| Voltage, acc. to regional specs | 100—240V. Freq. 50/60 Hz |
| Weight | 6,1 kg |
| Drive Unit DU8610 | |
| Driving axle rotation speed | 100 Rpm |
| Working height | 450 – 1250 mm |
| Voltage, acc. to regional specs | 100-240V. Freq. 50/60 Hz |
| Power | 0,55 kW |
| Current | 3,2 A |
| Torque | 55 Nm |
| Weight | 58 kg |
| Colour | Black RAL 9005 Yellow RAL 1003 |
